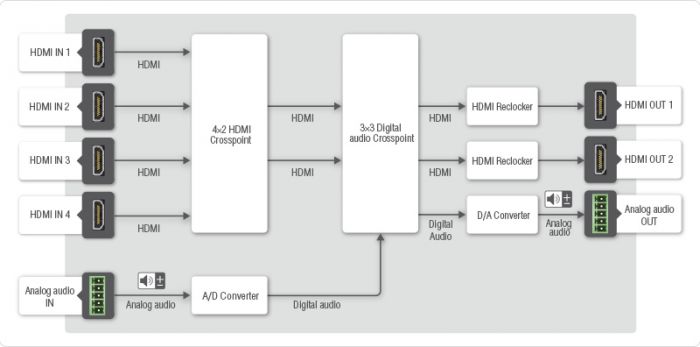

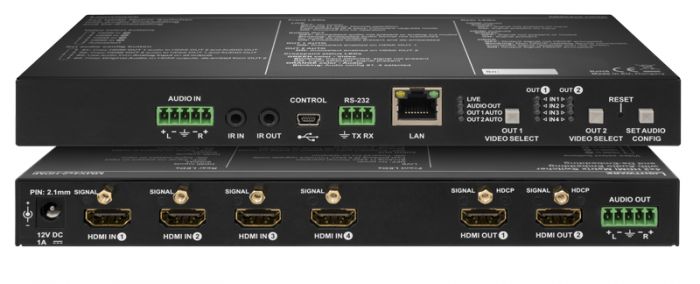

MMX4x2-HDMI is a uniquely mini size matrix switcher. It has four HDMI inputs and two independent HDMI outputs. Audio can be de-embedded from the HDMI signal to a balanced 5-pole Phoenix (Euroblock) port and external audio signal can be embedded into the HDMI stream from another 5-pole Phoenix input port. The volume and gain properties of the audio signal can be modified at both input and output. The unit is fully 4K/UHD/3D capable and HDCP compliant. The device has a built-in Event Manager configurable via the Lightware Device Controller software. Further control options are served by the USB, RS-232, IR (in and out) and Ethernet ports.
100 available event slots in ’Plus’ extenders
Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
Support to send CEC commands on HDMI ports for control of other devices.
Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.

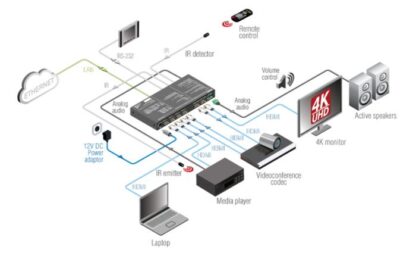

Applications
Classrooms
Conference and meeting rooms
Control room
Home cinema
Features
Cisco VC room integration compatibility
Advanced control feature pack for 3rd party video conference collaboration
1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
Audio embedding and de-embedding
Adjustable analog audio settings (volume, gain, balance)
Frame Detector (analyze detailed video timings)
Compact size
5-pole Phoenix balanced analog audio connectors
Mounting options for rack, furniture or truss
External universal power adaptor
Twist-and-lock DC power connector
HDCP enable/disable function on input
4×2 HDMI matrix switcher
HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
Multiple TCP/IP connections
Advanced EDID Management
Save and reload full crosspoint configurations as preset
Intuitive control software for device configuration
Front panel buttons for crosspoint control
Device control via Ethernet (TCP/IP), RS-232 and USB
Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
Command injection on RS-232 and IR ports
Fully non-blocking switching architecture
Built-in Event Manager control automation feature
Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
Pixel Accurate Reclocking
No video compression
HDCP 1.4 compliant
Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
Firmware upgrade through Ethernet
Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
