Lightware HDMI-TPS-RX110AY


HDBaseT™ Receiver with Relay Modules and Balanced Audio Out

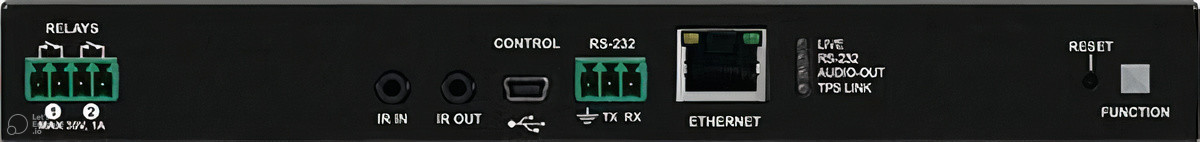

This dual relay capable HDBaseT™ compatible TPS receiver has one PoE capable TPS input and one HDMI output, and features audio de-embedding.


This dual relay capable HDBaseT™ compatible TPS receiver has one PoE capable TPS input and one HDMI output, and features audio de-embedding.

The HDMI audio is de-embedded to the balanced audio output via a Phoenix (Euroblock) connector, the audio port has volume control. The unit is HDCP compliant and has 4K/UHD and 3D capabilities. The built-in Event Manager room control feature provides the necessary control in a less complex application environment. Both the Event Manager feature and the dual relay module of the device are configurable via the freely available Lightware Device Controller software. USB, RS-232, IR (in and out) and Ethernet ports provide further connection options for control.


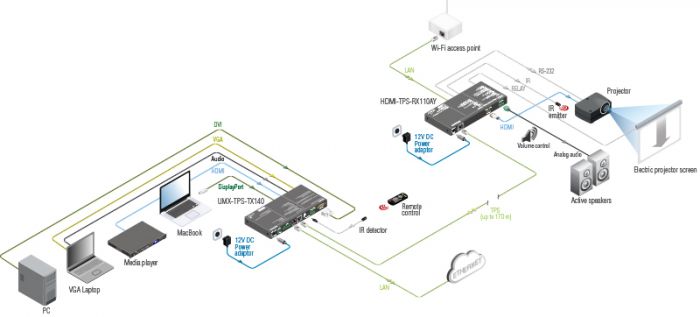

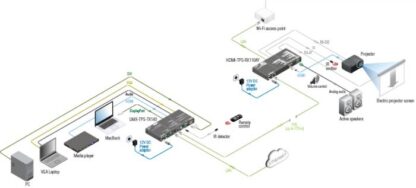

  • Classrooms
  • Meeting and conference rooms
  • Control room
  • Home cinema

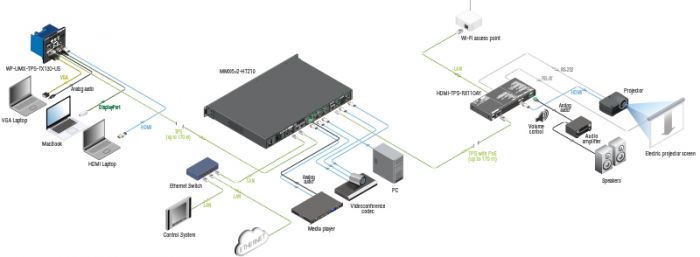

Compatible Products

  • MX Modular matrix frames – MX-TPS/TPS2-OB
  • 25G Modular matrix frames – 25G-TPS2-OB
  • Standalone TPS matrix frames – MMX6x2-HT series
  • TPS Transmitters:
  • HDMI-TPS-TX95/97
  • DVI-HDCP-TPS-TX95/97
  • UMX-TPS-TX100 series
  • WP-UMX-TPS-TX100 series
  • SW4-TPS-TX240
  • HDMI-TPS-TX200 series
  • DP-TPS-TX200 series
  • Single port standalone TPS power injector – TPS-PI-1P1


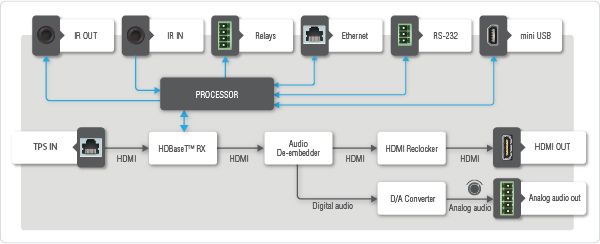

  • Can be remote powered through CATx cable (PoE PD)
  • HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
  • Built-in Event Manager control automation feature
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • 1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • HDCP 1.4 compliant
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • TPS link quality and cable length monitoring
  • Adjustable analog audio settings (volume, gain, balance)
  • Audio de-embedding
  • Balanced analog audio output for audio de-embedding
  • Firmware upgrade through Ethernet
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Advanced EDID Management
  • Pixel Accurate Reclocking
  • Command injection on RS-232 and IR ports
  • Device control via Ethernet (TCP/IP) and RS-232
  • Multiple TCP/IP connections
  • Intuitive control software for device configuration
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Built-in video test pattern generator
  • Bi-directional RS-232 and IR extension (pass-through and control)
  • Twist-and-lock DC power connector
  • Frame Detector (analyze detailed video timings)
  • External universal power adaptor
  • 2x Relay modules
  • 5-pole Phoenix balanced analog audio connectors
  • Mounting options for rack, furniture or truss
  • Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
