Lightware UCX-2×2-H30


Universal Matrix Switcher with HDMI 2.0 connectivity and USB 3.1 Gen1 features

Lightware’s universal matrix switcher allowing users to switch between hosts and BYOD devices using a combination of HDMI 2.0 and USB 3.1 Gen1 connections, with video and audio signals up to 4k@60Hz 4:4:4 and data speeds up to 5 Gbps.


Exploit the Possibilities of USB connectivity

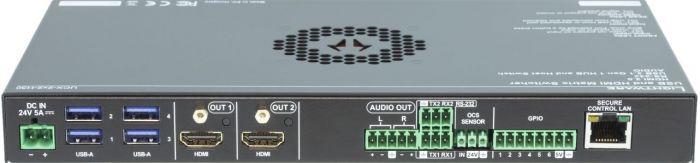

The device is designed to be a centerpiece of any collaboration space, and can be connected to four USB peripherals via USB-A type connectors.

Hosts then can connect their own devices to the UCX-2×2-H30 and gain control over the rooms peripherals. By simply using a combination of HDMI 2.0 and USB 3.1 Gen1 connections, video and audio signals can be transferred up to a resolution of 4k@60Hz 4:4:4 and data speeds up to 5 Gbps.

Additional Features and Capabilities


  • Multiple USB 3.1 Gen 1 connectivity for any type of USB devices (Camera, speakerphone, touch monitor, USB-HID devices etc…)
  • USB 3.1 Gen 1, USB 2.0, USB 1.1 compliant
  • Separate USB 3.1 Host switching layer for multiple USB hosts and USB devices
  • Dedicated secure corporate and room utility Ethernet connectivity
  • Multiple Ethernet network configurations fitting various corporate network topologies and IT security standards (e.g. 802.1x compliance)
  • SSH, SSL, HTTPS for IT security
  • Smart & noiseless cooling system
  • Occupancy sensor connection (with 24V power supply)
  • Splash screen for custom corporate logo and on-screen display warning messages
  • CEC at the HDMI outputs (from Firmware V1.4)
  • Audio de-embedding
  • GPIO control ports
  • Device control via Ethernet (TCP/IP)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
