Description

Features:

• 1RU size mounting
• Universal full range AC input with standard C14 socket
• Protections: Short circuit / Overload /
• 3 years warranty
• The extender units can be freely added or removed by users, TX and RX units can mix in any combination in the tray
• 4x Neutrik OpticalCON Duo
• Noiseless passive cooling
• Status LED lights on the units are mirrored to the front panel of power tray
• +1 status LED for 5V DC power feedback
• Powering USB port protection: in case a USB port fails the rest of the units keep on working
• Uniquely designed optical and USB cable management
• Optical cables within the power tray are numbered for easy identification and installation

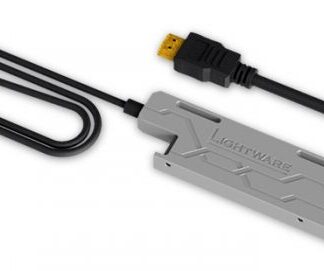

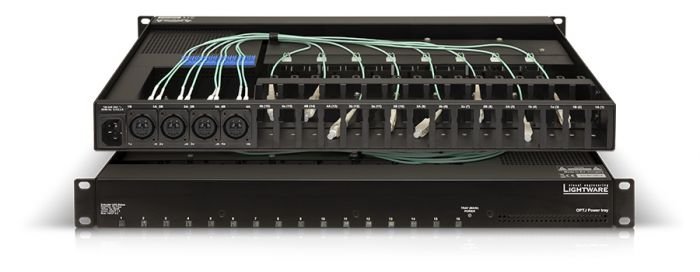

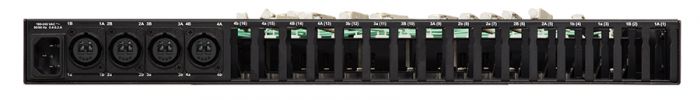

The PowerTray is a 1RU size housing accessory which can enclose up to 8 HDMI20-OPTJ-TX/RX90 units, also providing power source for every installed device. The optical fibers are connected to the four Neutrik OpticalCON Duo connectors, each carrying two signal fibers from four of the extenders, so in this PowerTray the maximum number of devices accommodated is eight. The HDMI tail cables of the extenders are accessible directly at the back of the PowerTray.

HDMI 2.0 optical matrix assembly: by connecting the HDMI connectors of the PowerTray with the input and output ports of an MX2-8×8-HDMI20-Audio matrix a HDMI 2.0 optical matrix system can be created with Full 4K UHD at 60 Hz 4:4:4 maximum resolution.
