Description

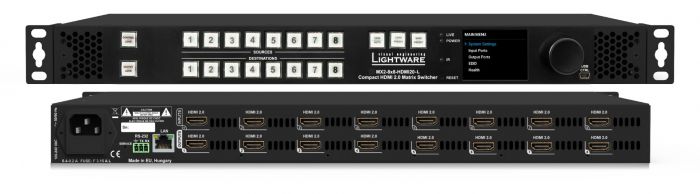

The MX2-8×8-HDMI20 L is an HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.

Its compact size, silent design and its crosspoint switching front panel keys make it is particularly suitable for live events.

This standalone product has 8 HDMI 2.0 inputs and 8 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.

The MX2-8×8-HDMI20 L matrix switcher supports both HDR and Dolby Vision in the HDMI signal.

Features

• Front to back cooling airflow
• Built-in universal power supply
• Supports several embedded audio formats (including PCM, Dolby Digital and DTS)
• HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
• Advanced EDID Management
• Front panel LCD menu and buttons for crosspoint control
• Device control via Ethernet (TCP/IP), RS-232 and USB
• CEC support (command injection)
• Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
• HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
• HDR and Low Latency Dolby Vision support
• Pixel Accurate Reclocking
• Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
• No signal latency, zero frame delay
