Description

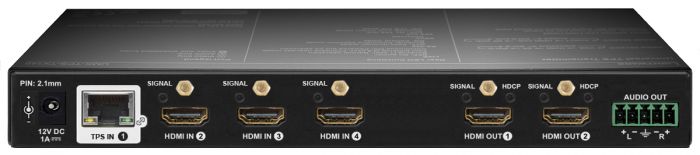

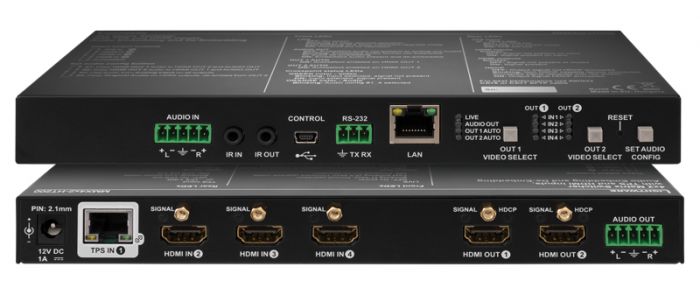

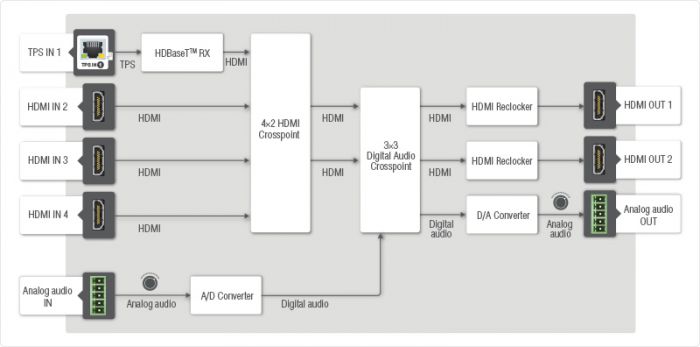

MMX4x2-HT is a uniquely mini size matrix switcher. It has three HDMI inputs and one HDBaseTTM compatible TPS input port. It has two independent HDMI outputs. Audio can be de-embedded from the HDMI signal to a balanced 5-pole Phoenix (Euroblock) port and external audio signal can be embedded into the HDMI stream from another 5-pole Phoenix input port. The volume and gain properties of the audio signal can be modified at both input and output. The unit is fully 4K/UHD/3D capable and HDCP compliant. The device has a built-in Event Manager configurable via the Lightware Device Controller software. Further control options are served by the USB, RS-232, IR (in and out) and Ethernet ports.
- 100 available event slots in ’Plus’ extenders
- Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
- Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
- Support to send CEC commands on HDMI ports for control of other devices.
- Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.

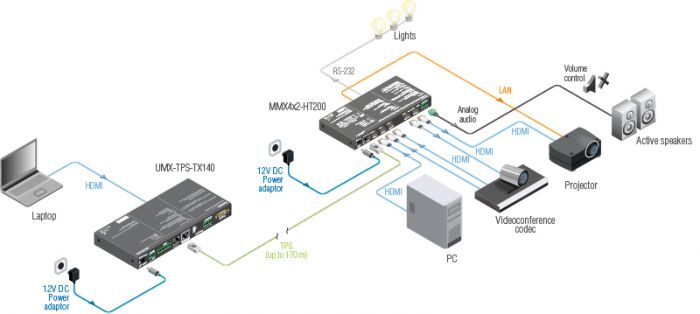

Applications
- Classrooms
- Conference and meeting rooms
- Control room
- Home cinema
Compatible Products
- TPS Transmitters:
- HDMI-TPS-TX95/97
- DVI-HDCP-TPS-TX95/97
- UMX-TPS-TX100 series
- WP-UMX-TPS-TX100 series
- SW4-TPS-TX240
- HDMI-TPS-TX200 series
- DP-TPS-TX200 series
- MX Modular matrix frames – MX-TPS/TPS2-OB
- 25G Modular matrix frames – 25G-TPS2-OB
- Standalone TPS matrix frames – MMX6x2-HT series
Features
- Cisco VC room integration compatibility
- Advanced control feature pack for 3rd party video conference collaboration
- 1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
- Audio embedding and de-embedding
- Adjustable analog audio settings (volume, gain, balance)
- Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
- Frame Detector (analyze detailed video timings)
- Compact size
- 5-pole Phoenix balanced analog audio connectors
- Mounting options for rack, furniture or truss
- External universal power adaptor
- Twist-and-lock DC power connector
- Bi-directional RS-232 and IR extension (pass-through and control)
- TPS link quality and cable length monitoring
- HDCP enable/disable function on input
- 4×2 HDMI matrix switcher with HDMI and TPS ports
- HDBaseT compatible
- Ethernet extension (100 Mbps)
- HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
- Multiple TCP/IP connections
- Advanced EDID Management
- Save and reload full crosspoint configurations as preset
- Intuitive control software for device configuration
- Front panel buttons for crosspoint control
- Device control via Ethernet (TCP/IP), RS-232 and USB
- Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
- Command injection on RS-232 and IR ports
- Fully non-blocking switching architecture
- Built-in Event Manager control automation feature
- Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
- Pixel Accurate Reclocking
- No video compression
- HDCP 1.4 compliant
- Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
- Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
- Firmware upgrade through Ethernet
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Built-in video test pattern generator
- No signal latency, zero frame delay
