$5,500.00
The UC-MX50-Z Crestron Flex advanced tabletop conferencing system provides a medium room video conference solution for use with Zoom Rooms™ software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, power supply, and cables.
The UC-MX50-Z Crestron Flex advanced tabletop conferencing system provides a medium room video conference solution for use with Zoom Rooms™ software. It supports single or dual video displays (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, power supply, and cables.
Native Zoom Rooms™ Software Experience
The UC‑MX50‑Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.
Intuitive User Interface with Impressive Audio
With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1‑X) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.
Simplified Deployment
The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High-Definition Video Conferencing
The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom detects the people in the room and frames them for an optimal view.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system’s built-in content ingest device switches to the connected laptop’s UC platform and returns to the native platform when disconnected.
Enterprise-Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Visit www.crestron.com/xiocloud for additional information.
Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.
Visit www.crestron.com/flexcare for additional information.
Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.
CCS‑UC‑1‑X Crestron Flex tabletop conferencing device includes: PW-2420RU Universal power supply and power cordCable, CAT5e, RJ‑45‑to‑RJ‑45, 12 ft (3.66 m)Cable management hardware

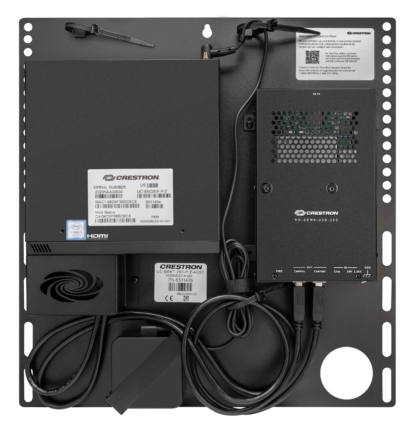

UC‑BRKT‑250‑P‑Z‑ASSYorUC‑BRKT‑260‑P‑Z‑ASSY UC Bracket Assembly for Zoom Rooms systems, comprised of: UC Engine: Mini PC with Zoom Rooms videoCAT5 to USB 3.0 converter for content ingestMounting Hardware
CCS‑CAM‑USB‑F‑400 Collaboration Camera
CBL‑4K‑DP‑HD-6 Active Converter Cable, DisplayPort™ to HDMI®, 18 Gbps, 6 ft (1.8 m); secondary display
CBL‑CAT5E‑7 Ethernet LAN cable, CAT5e, RJ‑45‑to‑RJ‑45, black, 7 ft (2.1 m)
CBL‑HD-6 HDMI Interface Cable, 6 ft (1.8 m); primary display
CBL‑HD‑THIN‑HS‑6 Thin HDMI cable for connecting display device, Type A male‑to‑male, 6 ft (1.8 m)
CBL-USB-A-BMICRO-6 USB 2.0 A – Micro-B cable, 6 ft (1.8 m)
CBL‑USBC‑USBA‑6 USB Type‑C® right‑angle to USB A cable 6 ft (1.8 m)
DM-CBL-ULTRA-PC-20 (2) Ethernet LAN cable for touch screen, CAT6a, RJ‑45‑to‑RJ‑45, blue, 20 ft (6 m)
UC-CAM-WMK Wall mount kit for Crestron cameras
Touch Screen 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels
UI Zoom Rooms UI
Mic Mute Symbol & Light Bar (2) Capacitive buttons with bi‑color LEDs, either button toggles between mute and unmute
AEC Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction; full‑duplex IEEE 1329 Type 1 compliant
Speaker Full range speaker, 11 W amplifier power, 95 dB SPL at 0.5 m maximum output, 90 Hz to 22 kHz frequency response
Microphones 360° quad mic array, 20 ft (6 m) typical pickup range
Extension Microphones Supports two mic pods, model CCS‑UCA‑MIC (sold separately)
Occupancy Sensor 6 ft (1.8 m) PIR range in front of touch screen
Ethernet 100 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory authentication, digest access authentication, password login, XiO Cloud service, Microsoft Intune® client
USB USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (model UC-ENGINE-P-Z) (cable included)
Power 24 VDC via external 100‑240 VAC, 50/60 Hz power pack, model PW‑2420RU (included)NOTE: The CCS-UC-1-X cannot be powered by Power over Ethernet or PoE+.
Dimensions Height: 4.11 in. (104 mm) Width: 8.92 in. (227 mm) Depth: 12.74 in. (324 mm)
Weight 5.50 lb (2.5 kg)
Image Sensor 12 Megapixel 1/2.3 CMOS sensor
Lens High precision, ultra wide angle, six element aspherical glass lens
Field of View 150° diagonal, 120° horizontal, 90° vertical
Aperture f/2.8
Autozoom Genius Framing automatic lossless digital zoom intelligently frames around people in the room
Connectivity Plug‑and‑play USB 3.1
Resolution/FPS HD 1080p @ 30 fps
Dimensions Height: 1.40 in. (36 mm) Width: 1.60 in. (41 mm) Depth: 2.82 in. (72 mm)
Weight 4.2 oz (120 g)
UC Engine Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
UC Client Zoom Rooms Software
Management Client XiO Cloud service
Content Ingest HDMI input via CAT5 to USB 3.0 converter
Display Output Single or dual display support
Display Output Resolution 1080p
Power UC Engine: 100‑240VAC, 50/60 Hz adapter (included); CAT5 to USB 3.0 converter: 24VDC via external 100‑240VAC, 50/60 Hz power pack (included)
Construction Metal mounting bracket, black, preassembled with UC Engine and CAT5 to USB 3.0 content ingest device
Mounting Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; the bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
Dimensions Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Maximum Depth: 1.87 in. (48 mm)
Maximum Weight 8.0 lb (3.7 kg)
| Weight | 27.06 lbs |
|---|---|
| Dimensions | 22.83 × 18.5 × 17.32 in |
