Crestron CCS-CAM-USB-F-400

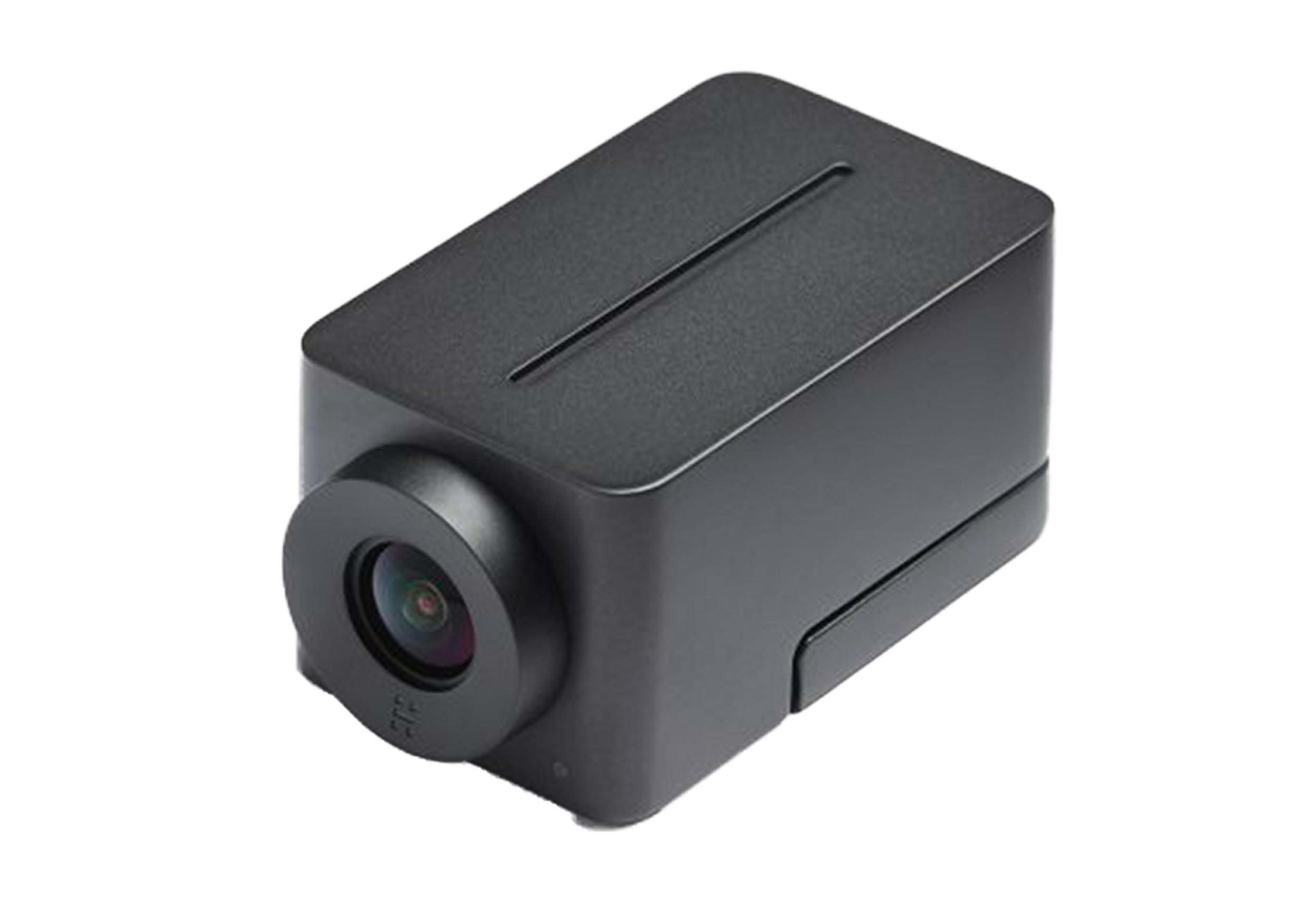

Huddly IQ™ Collaboration Camera

Provides an intelligent high-definition videoconferencing camera with Genius Framing digital autozoom.


Compact in size, yet tremendous on performance, the Huddly IQ™ camera (sold as model CCS‑CAM‑USB‑F‑400) features an ultra wide‑angle 150° diagonal field of view to capture an entire conference room with Full HD 1080p resolution. High precision aspherical optics, a 12 MP CMOS sensor, and advanced video processing ensure an immersive, crystal clear video image free from light or noise artifacts or optical aberrations. The camera has no moving parts, ensuring quiet operation, reliability, and accuracy.

Advanced Video Processing
The video processing engine uses real-time scaling, dynamic light optimization, and visual noise filtering to deliver excellent image quality. Genius Framing digital autozoom intelligently detects the people in the room and frames them perfectly at all times for an optimal view with no loss of resolution. With Genius Framing, there’s no need to control the camera manually or rely on stored presets. People counting analytics detects and reports the number of people in frame for analysis by room utilization software . The camera’s software is also upgradeable, allowing for regular enhancements and feature updates.

Plug & Play Connectivity
A USB connector provides high speed USB connectivity, a power connection, and plug & play compatibility when used with Crestron Flex UC video conference systems.

Versatile Mounting
The camera’s aluminum unibody construction is tripod compatible and features an integrated display mount that allows the camera to be installed in different locations. The Auto-Flip feature automatically rotates the image 180° when the camera is installed upside down, providing even more options for installation.

Key Features
  • Full HD 1080p video quality
  • Ultra wide-angle 150° diagonal field of view
  • High precision, six element aspherical glass lens reduces spherical aberrations
  • Advanced video processing engine provides excellent image quality
  • 4x lossless digital zoom, pan, and tilt
  • Genius Framing digital autozoom
  • People counting analytics
  • Auto-Flip Automatic 180° image rotation
  • Silent operation with no moving parts
  • USB 3.1 connectivity
  • Plug & play compatible with Crestron Flex systems
  • USB powered
  • Upgradable software
  • 3D noise reduction and bias compensating spatio-temporal noise filtering
  • Integrated display mount, tripod mount compatible

Technical Specifications

Optics & Processing

Image Sensor 12 Megapixel 1/2.3 CMOS sensor

Lens High precision, ultra wide angle, six element aspherical glass lens

Field of View 150º diagonal, 120º horizontal, 90º vertical

Aperture f/2.8

Processor Neural Compute Engine based on Intel® Movidius™ Myriad™ X video processing unit

Pan/Tilt/Zoom 4x lossless digital zoom, pan, and tilt

Autozoom Genius Framing automatic lossless digital zoom intelligently frames around people in the room

Auto-Flip Automatic 180° image rotation when mounted upside down

Dynamic Light Optimization Auto-adjusts light levels and white balance

Noise Reduction 3D noise reduction, bias compensating spatio-temporal filtering, wide area chroma filtering, flicker elimination

Scaling Real-time scaling, dewarping, and perspective correction

People Counting Detects and reports the number of people in frame


Output Signal Type USB UVC 1.1

Output Resolution HD 1080p @ 30 fps


USB USB 3.1; Plug & play compatible with Crestron Flex UC video conference systems, major computer operating systems, and other USB UVC class hosts


USB-C (1) USB Type-C® connector, female; USB 3.1 port


Power Requirement 5 VDC, 900 mA, via USB


Housing Aluminum unibody

Mounting Integrated mounting hinge for attachment to a display device; 1/4-20 threaded fitting for tripod mount


Height 1.40 in (36 mm)

Width 1.60 in (41 mm)

Depth 2.82 in (72 mm)


4.2 oz (120 g)


CE, IC, FCC Part 15 Class B digital device

Additional information

Weight 0.81 lbs
Dimensions 9.84 × 6.69 × 0.22 in
