Description

Yealink MVC640-C2-511 are native and easy-to-use video conferencing solutions specially designed for Microsoft Teams rooms. The MVC series provides a full scene video conference solution to cover all of the meeting rooms from small to large. According to the unique characteristics of the video conferencing room, a high-performance mini-PC is specially released. In the design of mini-PC, it takes into account both aesthetics and practicability, that fully integrating the cable management with itself to provide a flexible and reliable deployment solution for any meeting room. The MVC series features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join. Yealink MVC640-Wireless-CPW90 includes two CPW90 wireless microphones and a 4K UVC84 USB PTZ camera with 12x optical zoom to meet the requirements of medium meeting room.

Key Features

• One Cable Technology
• Wireless Microphone
• Yealink Camera Control Plug-in
• Auto Framing
• Wireless Content Sharing
• Device Management
• Teams Certified

Technical Specifications

Package Contents:

• 1x UVC84 12X optical USB PTZ 4K camera, VCR20 remote control, power adapter, wall-mount bracket and cables
• Yealink MCore Kit (with MCore mini-PC and MTouch II), power adapter, cables and wall bracket
• 1x MSpeaker II
• 2x CPW90 DECT-Wireless mics including charging dock and power adapter

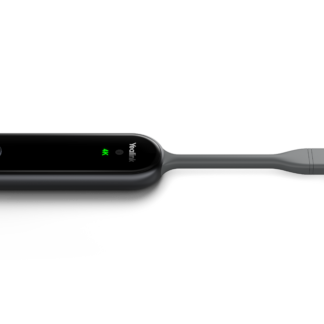

• 1x WPP20 for wireless content sharing
• The mini-PC computer preloads Windows 10 IoT Enterprise OS and license, Microsoft Teams Rooms App,
  as well as Yealink Camera Control Plug-in
• Including 2-year hardware warranty

MCore Mini-PC:

• 8th-gen Intel® QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 1x Yealink VCH port (RJ45), connect to MTouchII
• 4 x USB3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot
• Integrated cable management

MTouch II Touch Console:

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jack
• Human Motion Sensor
• Angle adjustable bracket (28° ~ 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C HD video input
