Description

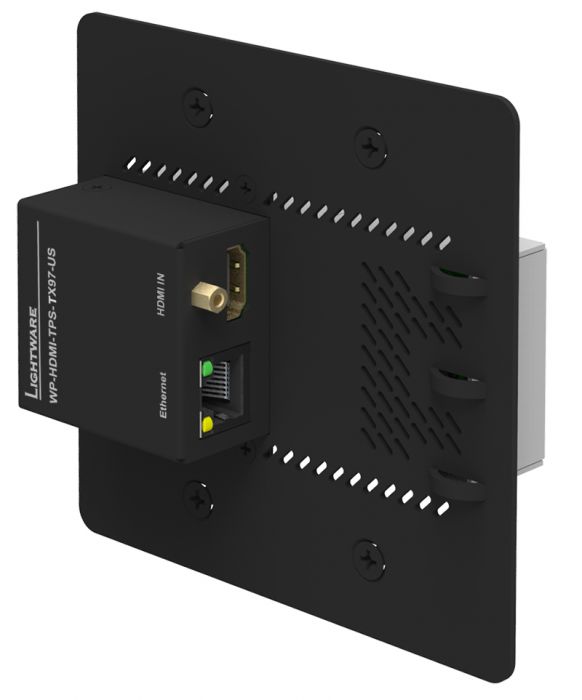

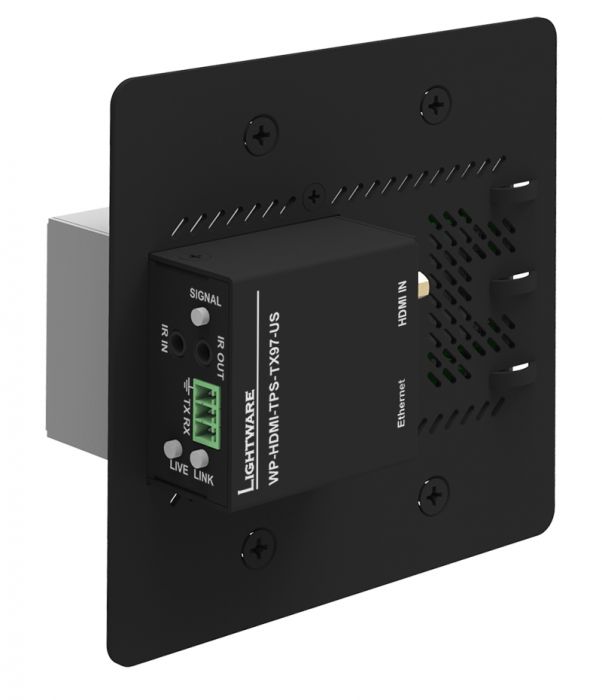

He WP-HDMI-TPS-TX97 series twisted pair HDBaseT™ compatible extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable. The unit offers bi-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth, also handling all standard audio formats and as well as 120 Hz 3D signals. PoE 48V remote powering is available through a single CATx cable, but a local power supply can also be used.

The auto-operation mode allows the device to detect the far-end extender’s mode and adopt to it. If the far-end device is in Auto Mode or it is a third-party HDBaseT™ device the link will be set to HDBaseT™ mode. If the far device is in forced Long Reach Mode then the auto-operation will set the link to Long Reach Mode. The ‘IR OUT’ can operate in either Wired (unmodulated) or Emitter (modulated) mode.

The WP-HDMI-TPS-TX97 and WP-HDMI-TPS-RX97 are compatible with HDBaseT™ extenders and matrix switchers.

WP mounting kit not included, shall be ordered separately. Compatible with US 2-gang wall box size panels.

This device can be installed conforming various wall panel standards by using the available mounting plates. Depending on which standard users intend to apply, this product is delivered with the selected mounting plate. The table below contains the available mounting plates and their SKU order numbers:

Applications

• Post production studios
• Control room
• Digital Signage
• Multiroom video
• Conference rooms, collaborative telepresence

Features

• Can be remote powered through CATx cable (PoE PD)
• Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
• Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
• 1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
• HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
• HDCP 2.2 compliant (transparent pass-through)
• Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
• No signal latency, zero frame delay
• Selectable operation mode (Auto or forced Long Reach mode)
• Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
• Phoenix 2-pol DC power connector
• Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
• Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
• HDBaseT compatible
• Ethernet extension (100 Mbps)
• Selectable IR output mode for emitter or wired connectivity
• Transparent EDID pass-through
• CEC support (pass-through)
• Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
• No video compression
• Bi-directional RS-232 and IR extension (pass-through)
• Compatible with several standard floor boxes
• Low power mode (standby)
• Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
• Active fan cooling
