Crestron UCA-SMK-UC2

Original price was: $220.00.Current price is: $132.00.

Swivel Mount for Crestron Flex Tabletop Small Room Conference System

Allows the Crestron Flex Tabletop Small Room Conference System to be permanently mounted to a tabletop. Provides up to 170° swivel range.

Description

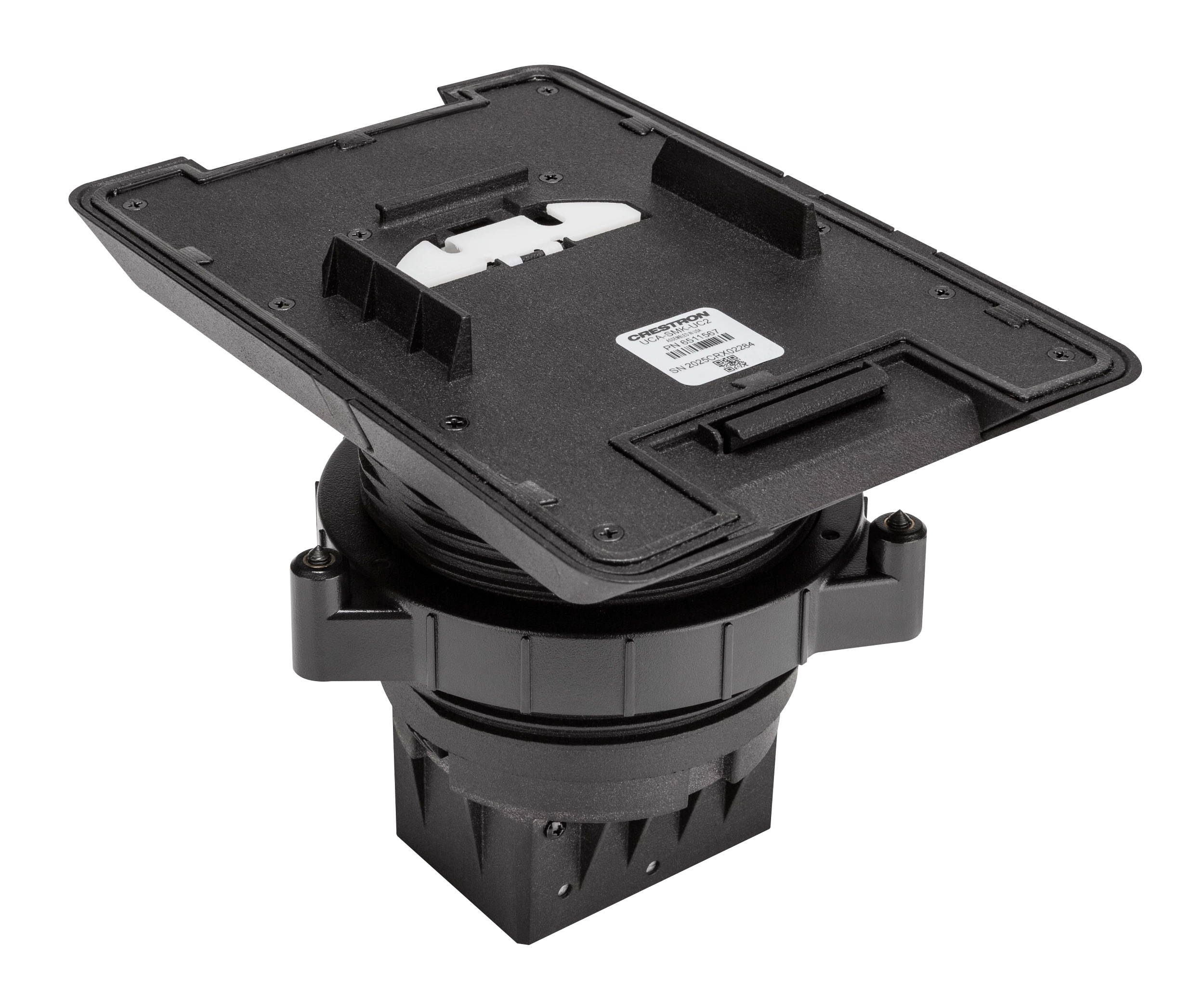

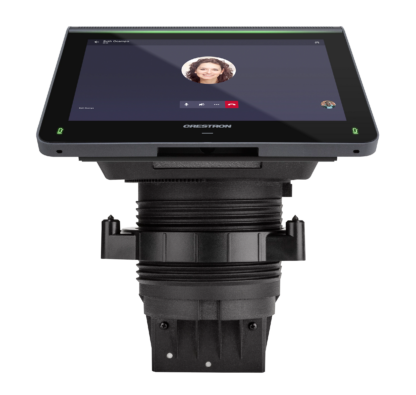

The UCA‑SMK‑UC2 is a low-profile swivel mount accessory for the Crestron Flex Tabletop Small Room Conference Systems ( UC‑MM30‑T , UC‑MM30‑TA , and UC‑MM30‑Z series). It provides a means for permanently mounting the device to a tabletop surface while retaining the ability to rotate it up to 170° for optimal positioning.

The swivel mount may be installed on any flat, level surface with a thickness of 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum. Wiring is routed through the center of the swivel mount, passing beneath the mounting surface for a completely hidden appearance.

Technical Specifications

Swivel Range

170° total; – 85° and +85°

Construction

Material Black polycarbonate-ABS

Mounting Tabletop mount, fastened by a locking nut; Surface thickness: 1/2 in. (13 mm) minimum to 1-1/4 in. (32 mm) maximum; 4 in. (102 mm) diameter mounting hole cutout (template included)

Dimensions

Height Without the UC‑2 mounted: 6.04 in. (153 mm) Above the table: 1.20 in. (30 mm) Below the table: 4.07 in. (103 mm)With the UC‑2 mounted: 8.16 in. (207 mm) Above the table: 3.34 in.(85 mm) Below the table: 4.07 in. (103 mm)

Width Without the UC‑2 mounted: Above the table: 5.39 in. (137 mm) Below the table: 5.18 in. (131 mm) with the locking ringWith the UC‑2 mounted: Above the table: 7.17 in. (182 mm) Below the table: 5.18 in. (131 mm) with the locking ring

Depth Without the UC‑2 mounted: Above the table: 7.91 in. (201 mm) Below the table: 5.18 in. (131 mm) with the locking ringWith the UC‑2 mounted: Above the table: 9.61 in. (244 mm) Below the table: 5.18 in. (131 mm) with the locking ring

Additional information

Weight 1.98 lbs
Dimensions 11.02 × 7.68 × 8.46 in
