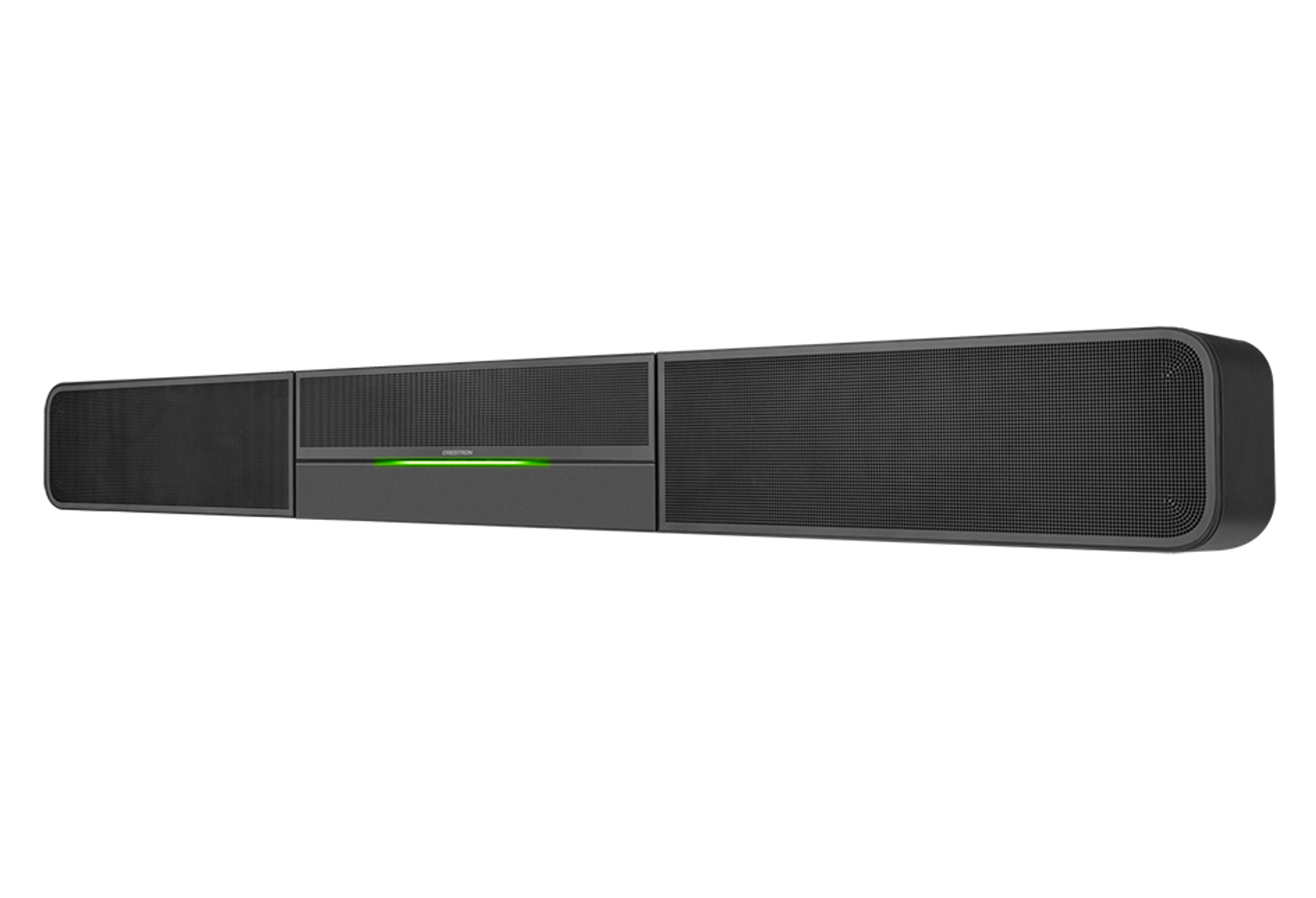

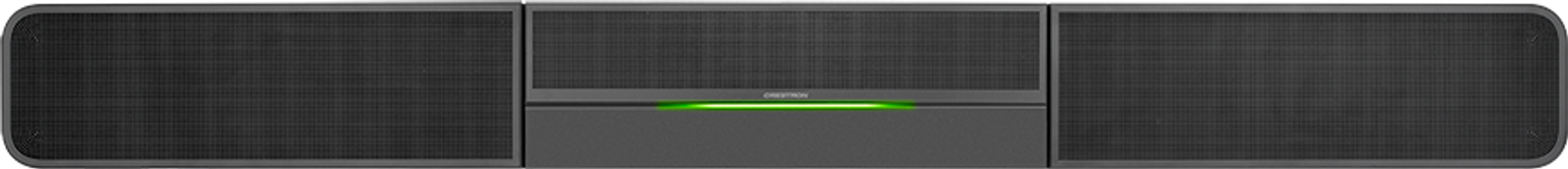

Crestron UC-SB1


UC Video Conference Smart Soundbar

A sleek and stylish soundbar comprising a high‑performance conferencing speakerphone in one front‑of‑room device. Installs cleanly beneath the room display, and interfaces with a computer via USB. Includes connectivity for an external USB camera (not included).


The Crestron® UC Video Conference Smart Soundbar (UC-SB1) is a front‑of‑room device that eliminates the need to install additional microphones or speakers in a conference space. Mounted on the wall or placed on a credenza beneath the room display(s), the smart soundbar looks great and sounds even better in a small to medium‑sized meeting space.

High‑powered stereo speakers, adaptive beamforming microphone, and advanced digital signal processing deliver exceptional full‑duplex speakerphone performance with highly intelligible, echo‑free voice clarity. A USB camera can be connected via a USB 3.0 port on the rear panel.

NOTE: See also model UC‑SB1‑CAM for a similar solution with built‑in camera.

USB Speakerphone
The UC-SB1 is a high‑performance AEC‑enabled speakerphone. A USB camera can also be connected for a full video conferencing solution. The soundbar integrates with a computer running UC conferencing or web collaboration software, and also supports presentation of computer‑based AV content. A single USB 3.0 (2.0 compatible) connection provides a plug‑and‑play interface to a computer.

The soundbar behaves like most USB Audio Class devices, enabling use as a speaker and microphone for all types of multimedia applications running on a computer. Even if you’re not on a call, you can use the smart soundbar to share content with everyone in the room, or make a professional recording of the meeting.

Superb Sound Quality
The soundbar facilitates conversations with exceptional audio fidelity and pickup. Its integrated 180° far‑field microphone array faithfully captures voices throughout the room using adaptive beamforming technology. Its high‑powered, two‑way stereo speakers produce full, rich and real sounding audio. High‑performance AEC technology achieves transparent full‑duplex performance free of distracting echo or noise. Additional digital signal processing assures optimal sound quality for an immersive experience.

USB Camera Input
The UC-SB1 includes a USB 3.0 camera port to accommodate an external USB camera. Connect the camera to the soundbar to facilitate full audio and video connectivity to a computer through a single USB interface.

Enhanced Functionality
The UC-SB1 integrates seamlessly with a wide variety of computer‑based UC platforms. Plug‑and‑play USB connectivity enables control of the soundbar through the computer without requiring extra software, remotes, or a control system. The computer detects the soundbar connection automatically, and the soundbar responds when a conference call is started, speaker volume is adjusted, or the speaker or mic is muted. On the front of the soundbar, operational status is displayed by a multicolor LED status bar that illuminates as the volume is increased, and changes colors to indicate connection and mute status.

Analog Audio Input & Output
Additional audio connectivity is provided through unbalanced stereo analog input and output jacks on the rear panel. The input accommodates a line‑level audio source, which feeds to the internal amplifier and speakers with no volume control or other signal processing. The output is provided to feed an assistive listening system, and carries the same audio signal as the soundbar speakers.

Easy Installation
The integral hinged mounting bracket attaches easily to a wall surface using four screws. A total of eight mounting keyholes, arranged in 2 in. (51 mm) increments, accommodates wall stud spacing from 12 to 24 in. (305 to 610 mm). The mounting bracket allows the soundbar to be tipped forward for full access to the rear panel connections. Once installed and connected, the soundbar is held upright magnetically for normal operation. Alternately, the soundbar can be placed on a shelf or credenza. Optimal results are achieved by positioning the unit at ear/face height when seated. A single 100‑240 VAC outlet is required to power the unit.

Key Features
  • A complete conferencing speakerphone solution in one front‑of‑room device
  • Sleek and stylish design installs cleanly beneath the room display(s) — mounts on the wall with an integral mounting bracket or sits on a credenza
  • 180° far‑field adaptive beamforming microphone array senses who is speaking and optimizes directionality for clear pickup
  • High‑powered 2‑way stereo speakers produce full, rich, and natural sound quality
  • Advanced AEC & DSP technology affords exceptional full‑duplex audio performance with highly‑intelligible, echo‑free 2‑way voice quality
  • Camera input allows connection of a USB conferencing camera
  • Analog audio input and output connections for local source and assistive listening devices
  • Multicolor status bar indicates audio volume, mute, and operational status
  • USB 3.0 port provides audio and video connectivity through a single USB interface
  • Plug & Play compatible with major computer OS platforms running web conferencing software

Technical Specifications


Woofers (2) 3 in. (76 mm) polypropylene cone w/rubber surround

Passive Radiators (2) 3 x 4‑3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround

Tweeters (2) 1 in. (25 mm) polyester dome

Amplifier Power 20 W RMS per channel, stereo

Frequency Response 80 Hz to 20 kHz (±3 dB)

Effective Output Level 91 dB SPL @ 1 m, both channels driven at full power


Microphone Linear quad‑element far‑field adaptive beamforming microphone array

Pickup Range 15 ft. (4.6m)

Pickup Angle 180° horizontal and 180° vertical

Frequency Response 20 Hz to 8 kHz


DSP Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed); full‑duplex IEEE 1329 Type 1 compliantNOTE: DSP affects USB audio in/out only unless noted otherwise

USB Audio In/Out USB 3.0, UAC 1.0 & HID, AEC‑enabled USB speakerphone, 2‑channel stereo far‑end/content signal input, 2‑channel mono microphone signal output; Plug & play compatible with the computer or other USB Audio Class host

Analog Input 2‑Channel stereo, fixed level (bypasses DSP), for in‑room amplification of an external audio source

Analog Input Sensitivity 1 Vrms per channel for full rated output

Analog Output 2‑Channel stereo, fixed level, feeds amplified audio content to an assistive listening systemNOTE: Output level varies for USB input signal only according to the speaker volume control setting; analog input signal passes through without volume control or DSP,


USB Camera Input USB 3.0 port, accepts connection of a USB camera

Output Resolution HD 1080p @ 30 fps


Status Bar (1) Multi‑segment RGBY LED zero‑center mutually‑diverging linear bargraph; Indicates the speaker volume, microphone mute, and speaker mute in red and green LEDs


AUDIO IN (1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio input; Input Level: 1 Vrms maximum; Input Impedance: 10k Ohms

AUDIO OUT (1) 3.5 mm TRS mini‑phone jack; Unbalanced stereo line‑level audio output; Output Level: 1 Vrms maximum; Output Impedance: 100 Ohms

PC (1) USB 3.0 Type‑B connector, female; USB 3.0 device port; Connects to computer; 6 ft (1.83 m) USB 3.0 Type B to Type A cable included

CAMERA (1) USB 3.0 Type‑A connector, female; USB 3.0 host port; Connects to an optional external camera

24 VDC 2.5 A 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU (included)


Power Consumption 22 W


Temperature 41° to 104° F (5° to 40° C)

Humidity 10% to 90% RH (non‑condensing)

Heat Dissipation 75 BTU/hr


Enclosure Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die‑cast aluminum rear cover, integral steel hinged mounting bracket

Mounting Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached)


Height 4.57 in. (117 mm), 4.64 in. (118 mm) with feet

Width 43.60 in. (1108 mm)

Depth 3.90 in. (100 mm)


13.24 lb (6.0 kg)


Regulatory Model: UC-SB CE, IC, UL 62368-1, CSA C22.2 62368-1, EN 62368-1, IEC 62368-1, FCC Part 15 Class B, ICES-003 Issue 5 Class B, EN55022:2010 Class B, AS/NZS CISPR22:2010 Class B, AS/NZS CISPR 22:2010 Class B, EN55024:2010, EN61000-3-2:2014, EN61000-3-3:2013, RoHS compliant, WEEE

Additional information

Weight 18.48 lbs
Dimensions 50.0 × 8.66 × 7.87 in
