Crestron UC-BX30-T-WM


Crestron Flex Advanced Small Room Conference System with Video Soundbar and Wall Mounted Control Interface for Microsoft Teams® Rooms

The UC-BX30-T-WM Crestron Flex advanced wall mount conferencing system provides a small room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays1 (not included) and features a wall mount touch screen, smart soundbar and camera, UC bracket assembly, UC presentation transmitter, PoE injector, and cables.


The UC-BX30-T-WM Crestron Flex advanced wall mount conferencing system provides a small room video conference solution for use with Microsoft Teams® Rooms software. It supports single or dual video displays (not included) and features a wall mount touch screen, smart soundbar and camera, UC bracket assembly, UC presentation transmitter, PoE injector, and cables.

Native Microsoft Teams® Rooms Experience
The UC-BX30-T-WM system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Intuitive User Interface

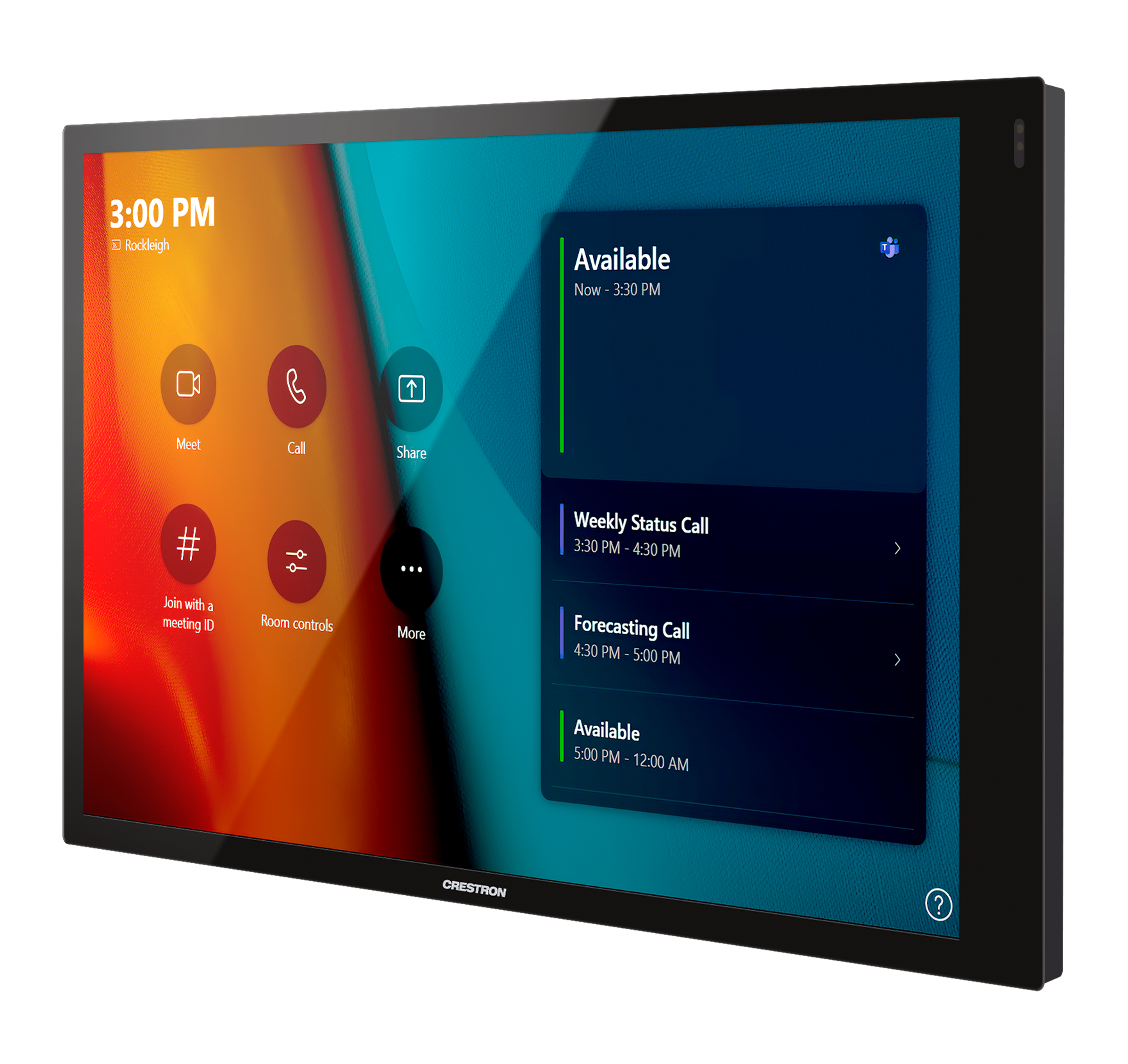

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® wall mount touch screen (TSW‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment

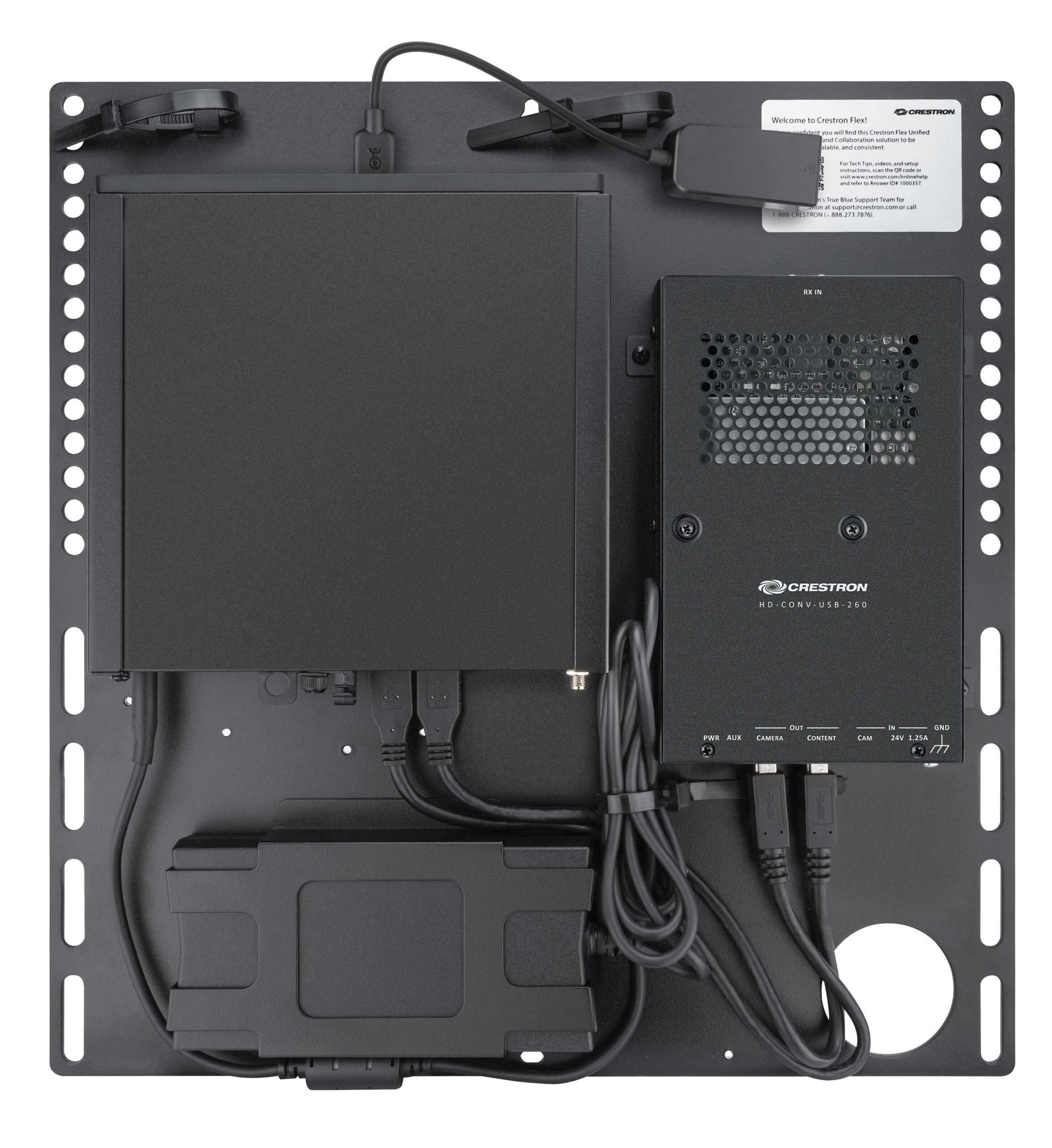

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron’s direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.

Wall Mount Options
Using the bracket provided, the touch screen is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.

High‑Definition Video Conferencing with Impressive Audio
High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC-SB1-CAM-FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.

Crestron Control System Integration
The UC-BX30-T-WM can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC‑PR) switches to the connected laptop’s UC platform and returns to the native platform when disconnected. For a list of BYOD tested devices on the UC‑PR, refer to OLH Article 1000889 .

Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Visit for additional information.

Premium‑Level Support
Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Visit for additional information.

Dual Control Option
A TS- or TSW- 70 series 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.

Deployment Resources
View the Crestron Flex Pre-Deployment Checklist to help plan your Crestron Flex installation.

Key Features
  • Front‑of‑room video conferencing solution for a Microsoft Teams® Rooms environment
  • Present, call, conference, and collaborate using your own device’s UC conference platform (BYOD) or the native Microsoft Teams Rooms platform
  • Native Microsoft Teams Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
  • Complete kit contains a 10.1 in. wall mount touch screen, smart soundbar and camera, UC bracket assembly, UC presentation transmitter, and PoE injector— just add a display and mount
  • Easy to specify and install — no custom design, programming, or software installation required
  • Optional integration with Crestron® control systems
  • Direct connection option between UC Engine and touch screen for simple installation and configuration
  • Network management and provisioning, system alerts, and the pairing of the touch screen to the system’s UC Engine through the XiO Cloud® service
  • Premium‑level support with Crestron Flex Care (optional)
  • Enterprise-grade security – connects and communicates securely over any enterprise or SMB network
  • Supports single or dual video displays (not included)

Technical Specifications

Included Components

TSW‑1070‑B‑S-T-V 10.1 in. (257 mm) wall mount touch screen, black

UC‑BRKT‑250‑P‑T‑ASSYor UC‑BRKT‑260‑P‑T‑ASSY UC Bracket Assembly for Microsoft Teams Rooms systems, comprised of: UC Engine: Mini PC with Microsoft Teams videoADPT-USB-ENET: USB-to-Ethernet AdapterCAT5 to USB 3.0 converter for content ingestMounting hardware

UC‑PR UC Presentation Transmitter with Cable Organizer

UC‑SB1‑CAM‑FLEX UC Video Conference Smart Soundbar and Camera

CBL‑4K‑DP‑HD‑6 Active Converter Cable, DisplayPort™ to HDMI, 18 Gbps, 6 ft (1.8 m); secondary display

CBL-CAT5E-7 (2) Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)

CBL‑HD‑6 HDMI Interface Cable, 6 ft (1.8 m); primary display

DM‑CBL‑ULTRA‑PC‑20 (2) Ethernet LAN cable, CAT6a, RJ45‑to‑RJ45, blue, 20 ft (6.1 m)

Wall Mount Touch Screen

Touch Screen 10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels

UI Microsoft Teams UI plus optional Crestron Smart Graphics® room control UI

Ethernet 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant

Power over Ethernet IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE

Power Powered via PoE passthrough on the UC-PR

Construction Plastic, smooth black finish, edge-to-edge glass with black surround

Dimensions Height: 5.87 in. (149 mm) Width: 9.46 in. (240 mm) Depth: 2.01 in. (51 mm) Dimensions do not include mounting bracket or add-on accessories

Weight 1.61 lb (730 g)

Smart Soundbar and Camera

Speakers Stereo 2‑way, 20 W per channel; 3 in. (76 mm) woofers; 3 x 4-3/8 in. (76 x 112 mm) passive radiators; 1 in. (25 mm) dome tweeters; 80 Hz to 20 kHz (±3 dB) frequency response; 91 dB SPL @ 1 m output level (both channels driven at full power)

Microphone Linear quad-element far-field adaptive beamforming microphone array; 15 ft (4.6 m) pickup range, 180° horizontal and 180° vertical pickup angle; 20 Hz to 8 kHz frequency response

Audio DSP Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed); Full-duplex IEEE 1329 Type 1 compliant

Camera Optics 12 Megapixel 1/2.3 CMOS sensor, ultra wide angle six element aspherical glass lens, f/2.8 aperture

Camera Field of View 150º diagonal, 120º horizontal, 90º vertical

Autozoom Genius Framing automatic lossless digital zoom intelligently frames around people in the room

Camera Noise Reduction 3D noise reduction, bias compensating spatio-temporal filtering, wide area chroma filtering, flicker elimination

Camera Scaling Real-time scaling, dewarping, and perspective correction

Camera Resolution HD 1080p @ 30 fps

Analog Audio Input 2-Channel stereo via 3.5 mm TRS mini-phone jack, fixed level (bypasses DSP), 1 Vrms maximum per channel for full rated output, for in-room amplification of an external audio source

Analog Audio Output 2-Channel stereo via 3.5 mm TRS mini-phone jack, fixed level, 1 Vrms maximum, feeds amplified audio content to an assistive listening system

Status Bar Multi-segment RGBY LED zero-center mutually-diverging linear bargraph

Main Power 24 VDC via external 100‑240 VAC, 50/60 Hz power pack, model PW‑2420RU (included)

Enclosure Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die-cast aluminum rear cover, integral steel hinged mounting bracket

Mounting Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached)

Dimensions Height: 4.57 in. (116 mm), 4.64 in. (118 mm) with feet Width: 43.60 in. (1107 mm) Depth: 3.90 in. (99 mm)

Weight 13.56 lb (6.2 kg)

UC Bracket Assembly

UC Engine Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity

UC Client Microsoft Teams Rooms

Management Client XiO Cloud Service

Content Ingest HDMI input via CAT5 to USB 3.0 converter

Display Output Single or dual display support

Display Output Resolution 1080p

Power UC Engine: 100‑240VAC, 50/60 Hz adapter (included); CAT5 to USB 3.0 converter: 24VDC via external 100‑240VAC, 50/60 Hz power pack (included)

Construction Metal mounting bracket, black, preassembled with UC Engine and CAT5 to USB 3.0 content ingest device

Mounting Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate

Dimensions Height: 15.00 in. (381 mm) Width: 14.50 in. (368 mm) Maximum Depth: 1.87 in. (48 mm)

Maximum Weight 8.0 lb (3.7 kg)

UC Presentation Transmitter4

Video Input Signal Types HDMI, DisplayPort 1.2 via USB Type-C® port

Video Output Signal Types HDMI over CAT5

Resolution 1080p

Video Content Protection HDCP 1.4 and HDCP 2.2

Audio Input Signal Types HDMI, DisplayPort 1.2 via USB Type-C port

Audio Output Signal Types HDMI over CAT5

Communications Ethernet: 100 Mbps, auto-switching, auto negotiating, auto-discovery HDMI over CAT5: HDCP, Ethernet HDMI: HDCP USB: USB 2.0 and USB 3.0

Connectors (1) LAN PoE, 8-pin RJ-45 (1) ACC, USB 3.0 Type-B; For firmware loading only (1) USB 2.0 Type-A (1) USB 2.0 Type-B (1) USB 2.0 Type-C (1) HDMI IN (1) To RX, 8-pin RJ-45 (1) DC power connector (1) LAN, 8-pin RJ-45 (1) Ground, 6-32 screw

Indicators PWR: (1) Green LED, indicates operating power supplied via power supply Ethernet: (2) LEDs on To RX port; Green indicates Ethernet link status; Amber indicates Ethernet activity

Power Supply 24VDC, 3.75A, 100-240VAC, 90 W

Device Charging Up to 60 W charging for devices connected via USB-C® port

Construction Metal, black finish, integral mounting flanges; Vented top, front, bottom, and sides

Mounting Surface mount for mounting under table; Attaches to a single rack rail

Dimensions Height: 1.58 in. (40 mm) Width: 9.25 in. (235 mm) Depth: 8.20 in. (208 mm)

Additional information

Weight 40.26 lbs
Dimensions 48.82 × 18.5 × 12.2 in
