$143.00
Mounts to a TSW‑770 or TSS‑770 series touch screen outside a meeting room to provide a 180° visual indication of the room’s availability. Illuminates green if the room is available and red when reserved, with options for custom color mixing and programming.
The Crestron® TSW-770-LB is a room availability light bar designed for use with TSW‑770 or TSS‑770 series touch screens. The TSW-770-LB provides a 180° visual indication of a room’s availability as part of a complete enterprise room scheduling solution. The TSW-770-LB mounts easily to the rear of the touch screen and illuminates bright green or red to indicate the room availability status, with options for custom color mixing and programming. The TSW-770-LB features a clean, stylish appearance and vivid color illumination that complement any corporate office environment, and it is energy efficient at less than 2 W power consumption.
Room Availability Status

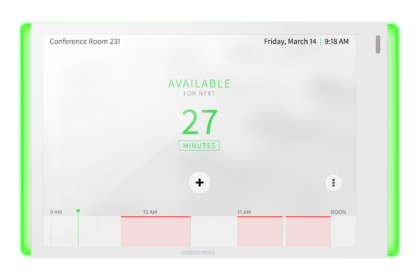

For room scheduling applications, the TSW-770-LB simply connects to the touch screen via USB and requires no special programming or configuration. The illumination color is controlled by the room scheduling application, which runs on the touch screen and syncs with the Crestron Fusion® software or another room scheduling application. The TSW-770-LB illuminates green when the room is available and red when the room is occupied. It can also blink to indicate an emergency message broadcast from Crestron Fusion.
Custom RGB Color Mixing
For custom applications, the TSW-770-LB can be configured to illuminate in almost any desired color. The TSW-770-LB features tricolor RGB LEDs that allow for a full spectrum of colors by blending the red, green, and blue elements in 1% increments. Custom RGB color mixing is performed either through the touch screen directly or via custom control system programming. A Crestron control system connected to the touch screen can be programmed to support various functionality, enabling colors to alternate, fade in and out, or blink on and off as desired.
Versatile Mounting Options
The TSW-770-LB is compatible with various TSW‑70 series mounting solutions to support installations common for room scheduling touch screens, including the TSW‑70‑UMB universal mounting bracket, the TSW‑770‑MSMK multisurface mount kit, and the TSW‑770/1070‑MUMK mullion mount kit.
Illumination RGB LED
Functionality Supports alternating red/green indication of room availability status for room scheduling; Supports RGB color mixing via touch screen configuration or custom control system programming
USB USB 2.0 device for connection to a TSW‑770 or TSS‑770 series touch screen
USB (1) Attached lead with USB Type A connector, male; USB 2.0 device port; Connects to the USB host port on the touch screen
Flex Circuit Slot Attaches the light bar panel to the control module
USB Power 2.5 W
Power Consumption 1.1 W typical
Temperature 41 to 104 °F (5 to 40 °C)
Humidity 10% to 90% RH (noncondensing)
Heat Dissipation 5 BTU/hr
Composition Two-piece assembly composed of a control module and light-diffusing plastic light bar panel
Mounting Control module attaches to the rear of the touch screen using screws, light bar panel sandwiches between the touch screen and mounting surface, 1-5/8 in. (41 mm) minimum mounting depth, compatible with all TSW‑770/TSS‑770 series supported electrical boxes, multisurface mount kits, and mullion mount kits
Height 4.17 in. (106 mm)
Width 7.03 in. (179 mm)
Depth 2.26 in. (57 mm)
Dimensions shown are for the complete touch screen and light bar assembly; projects 0.77 in. (20 mm) from the mounting surface
Regulatory Model: M201929001; CE, IC, FCC Part 15 Class B digital device
| Weight | 0.51 lbs |
|---|---|
| Dimensions | 11.02 × 6.5 × 3.15 in |
